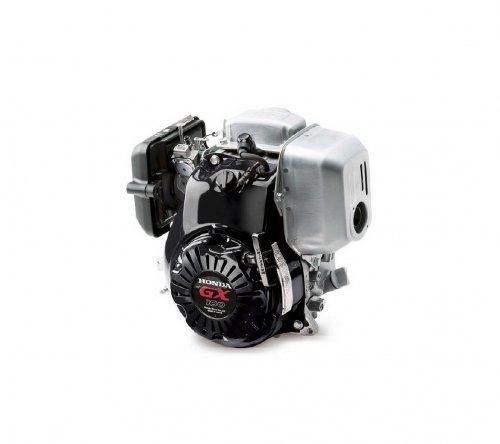

Honda GΧ100 Tapered Shaft Gasoline Engine

The GX100 Rammer engine (GX 100 RT-KR-AA-SD) for soil compactors is specially designed for high vibration resistance, which makes it ideal for these machines.
• 4-stroke single cylinder OHV petrol engine.
• Muffler protector and fan cover reinforced at fixing points.
• Recoil starter made of steel.
• Governor rod provided with bushing.
• Spark plug cap made of resin.
• A simple but innovative lubrication system with dual breather chamber guarantees an optimum engine lubricating performance in all rammer operating conditions.
• Diaphragm carburetor eliminates the risk of carburetor overflow when the engine is stored on its side.
• Special tamper-mounting flanges are optional.
• It has a reinforced cast iron cylinder as well as a redesigned and lighter piston for less vibration.
• Easy start with automatic decompression system with automatic return rope.

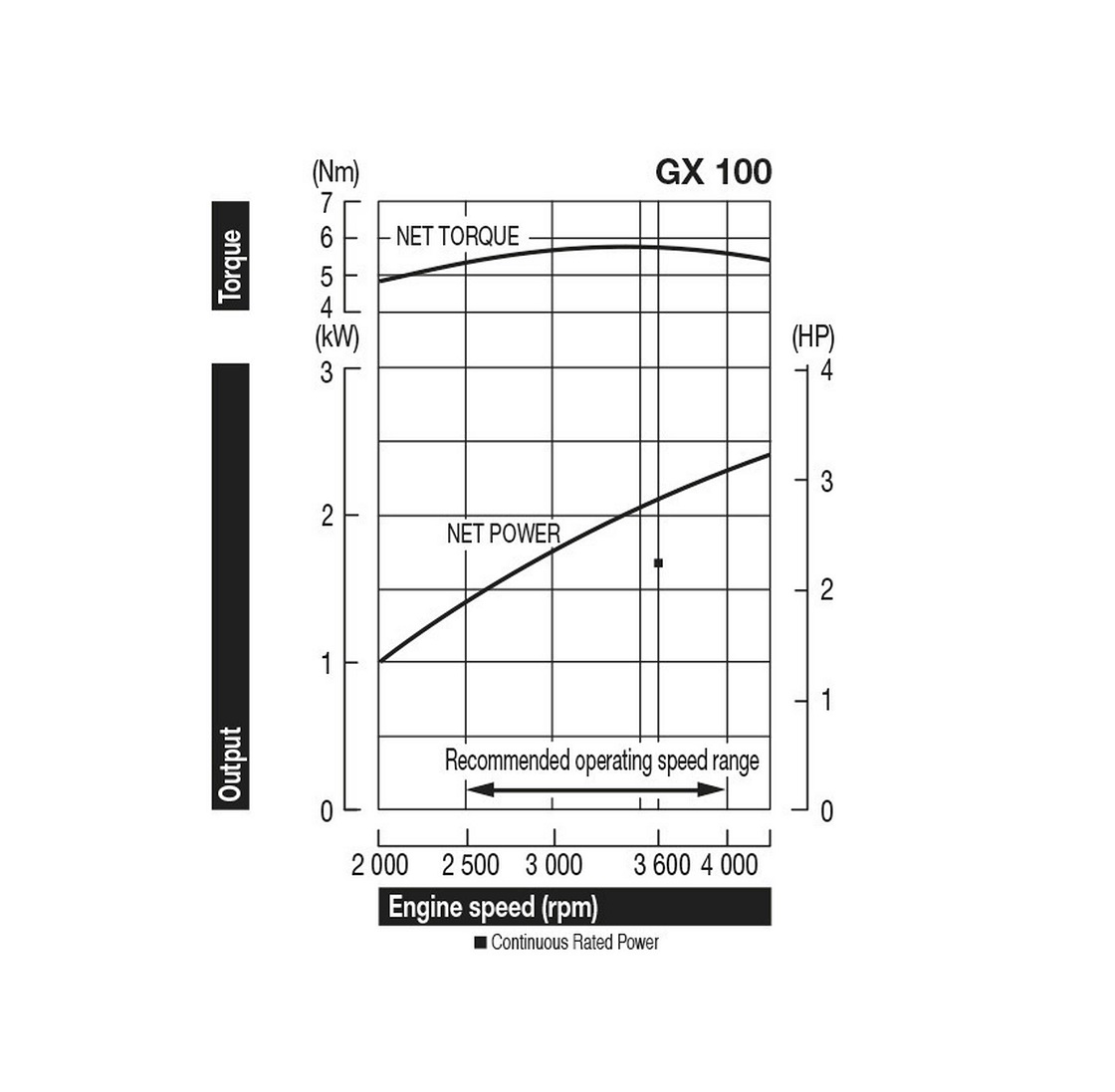

• Its net power is 2.8 HP (2.1 kW) at 3600 rpm.
• Maximum net torque is 5.7 Nm (0.58 kgfm) of torque at 3600 rpm.
• Transistorised ignition system.
• Low fuel and oil consumption.
• With an Oil Alert system, which is designed to prevent damage caused by an insufficient amount of oil in the crankcase.
Before the oil level in the crankcase drops below the safe limit, the oil warning system will automatically shut down the engine.
• Made with high-quality materials and custom-made components that ensure reliable, long-lasting use.
• It achieves high performance but also low levels of noise and vibration and emission of pollutants, without ever sacrificing its reliability.
• Honda engines have deservedly earned worldwide recognition for their ability to deliver power in even the most demanding applications.
• They are the first choice of the biggest manufacturers.
• 24 months Honda warranty (for professional use).
