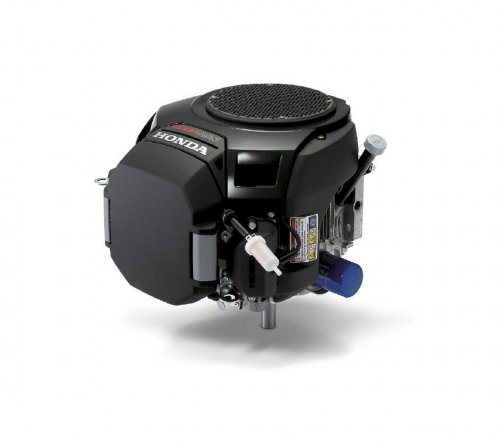

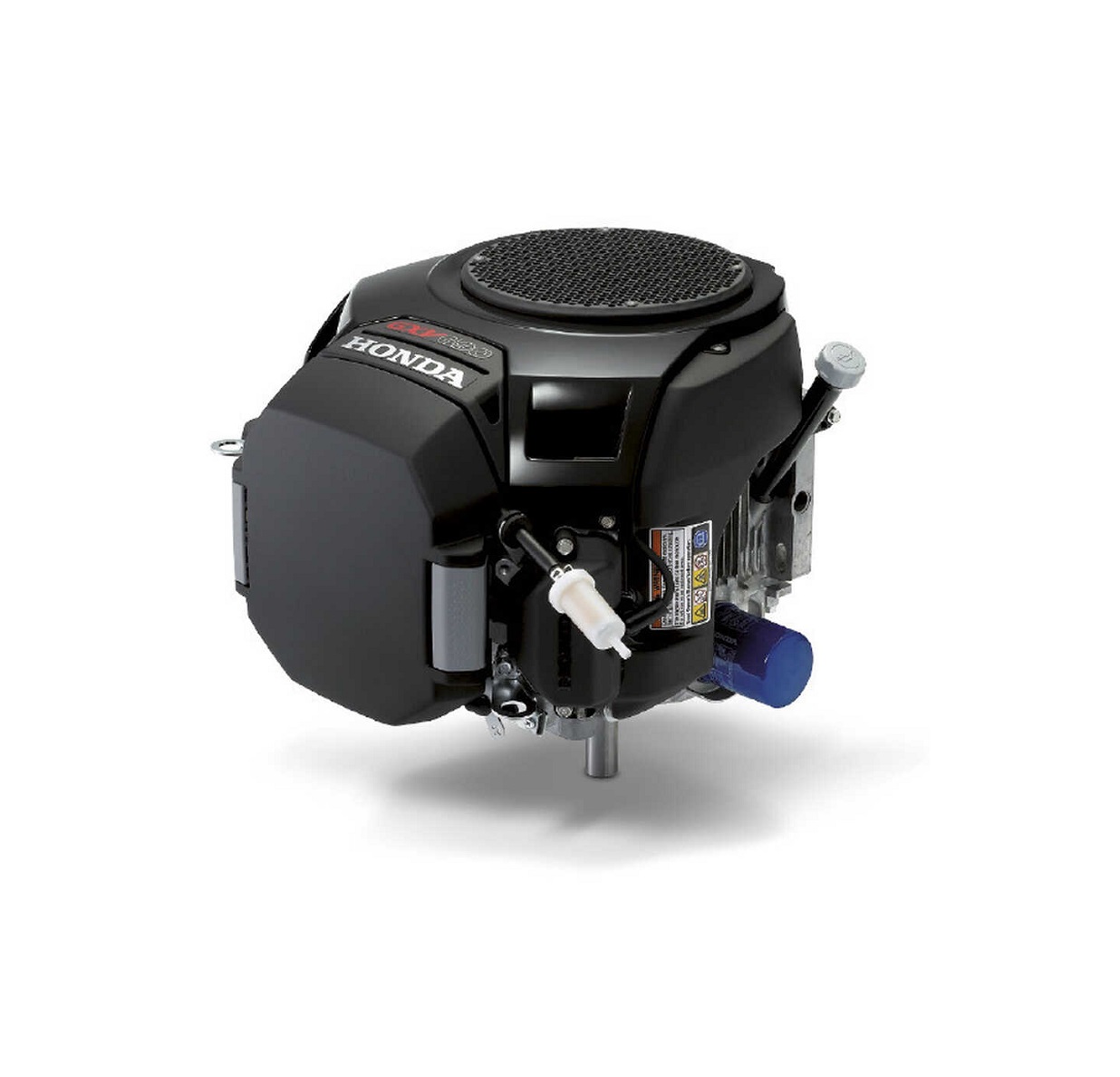

Honda GΧV690 Keyway shaft gasoline engine

The GXV690 engine is suitable for professional lawn and garden equipment such as riders and lawn tractors, construction machinery and other heavy duty professional applications.

• 4-stroke, 2-cylinder (V-twin), OHV gasoline engine, 90° Vertical shaft (688 cc).
• Designed with overhead valves (OHV) for improved combustion efficiency.
• Easy electric start with starter.
• High power to displacement ratio.

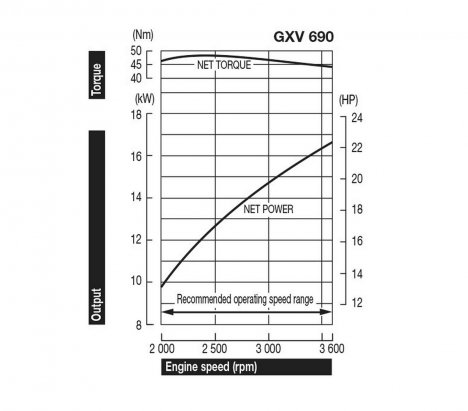

• Its net power is 22.1 HP (16.5 kW) at 3600 rpm.
• Maximum net torque is 48.3 Nm (4.93 kgfm) of torque at 2500 rpm.
• Low fuel and oil consumption.
• Variable ignition timing (digital CDI) results in high power output, reduced fuel consumption and excellent emissions performance.
• With an Oil Alert system, which is designed to prevent damage caused by an insufficient amount of oil in the crankcase.
• Before the oil level in the crankcase drops below the safe limit, the oil warning system will automatically shut down the engine.
• Made with high-quality materials and custom-made components that ensure reliable, long-lasting use.
• Exceeds European emissions legislation.
• High efficiency cooling fan creates higher airflow with reduced noise levels.
• It achieves high performance but also low levels of noise and vibration and emission of pollutants, without ever sacrificing its reliability.
• Honda engines have deservedly earned worldwide recognition for their ability to deliver power in even the most demanding applications.
• They are the first choice of the biggest manufacturers.
• 24 months Honda warranty (for professional use).
• 17A charging coil.
