- Maximum power: 13 hp
- Cubic Capacity: 498 cm³
- Phases: Three-phase
- Outlet voltage: 400 V - 230 V - 12 V
- Frequency: 50 Hz
- Maximum Power Speed (rpm): 3000 rpm
- Type: Closed type
- Maximum H/Z power : 7.9 kVA 3ph - 6.3 kW 1ph
- Recommended H/Z power: 7.5 kVA 3ph - 6 kW 1ph
- Power factor: 0.8
- Maximum current: 14 A - 28.3 A
- Voltage stabilization: AVR
- Power outlets: 1 x 16Α 400V & 1 x 32Α 230V 1 x 8.3A 12V
- Motor rotation speed: 3000 rpm
- Engine model: ITC Power D500E
- Cylinder number: 1
- Fuel used: Diesel
- Fuel tank capacity: 12 L
- Oil tank capacity: 1.65 L
- Start-Up: Electric
- Cooling system: Air Cooled
- Sound pressure / Power level: 72 dBA @ 7m
- Power Supply: Diesel-Powered
- Operating autonomy: 10 h @ 50% load
- Weight: 159 kg
- Size: 92 x 52 x 76 cm

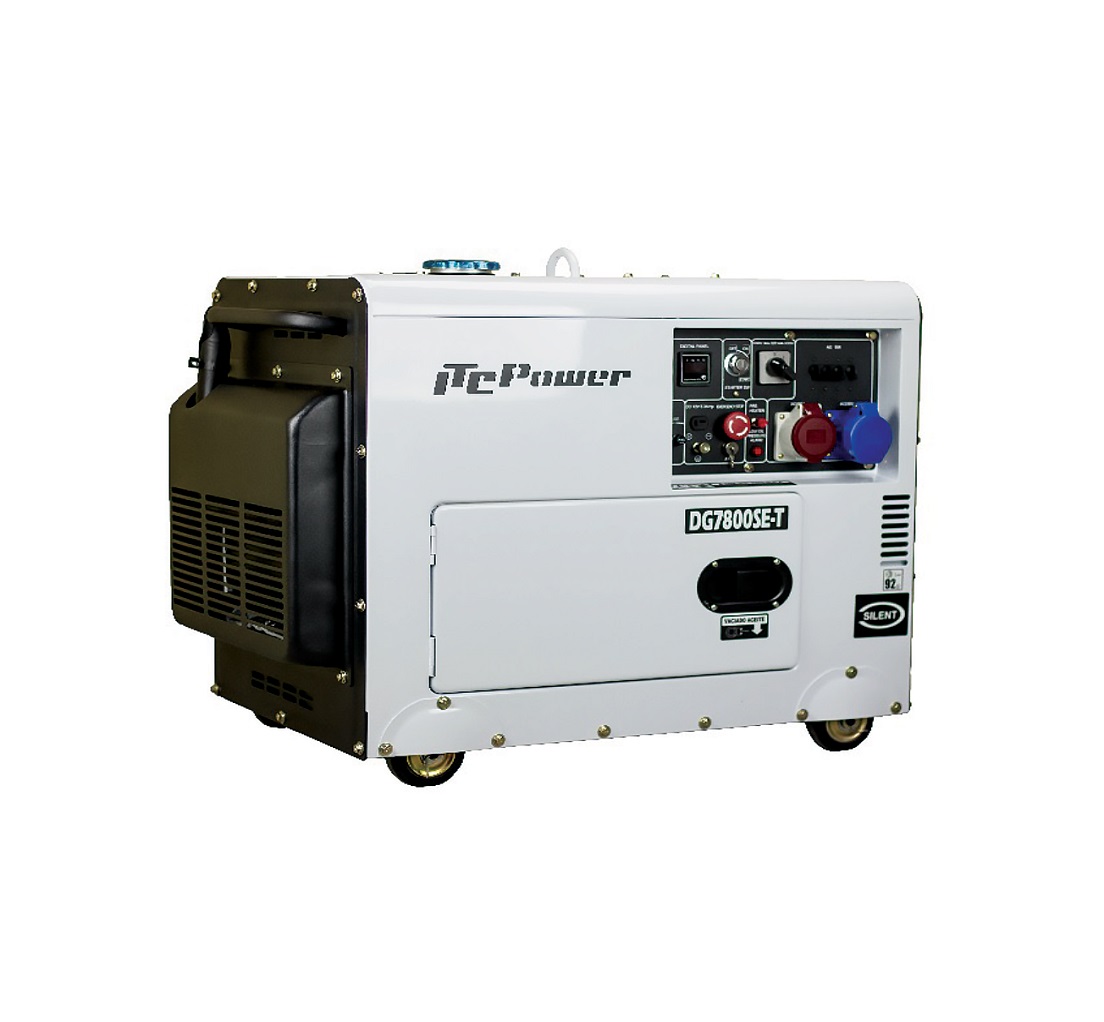

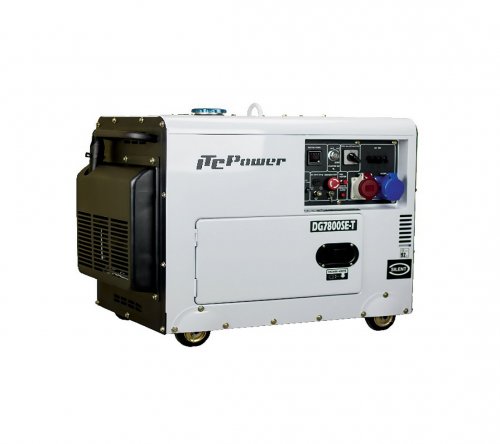

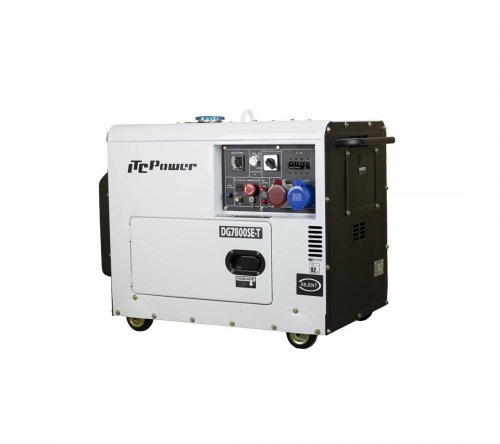

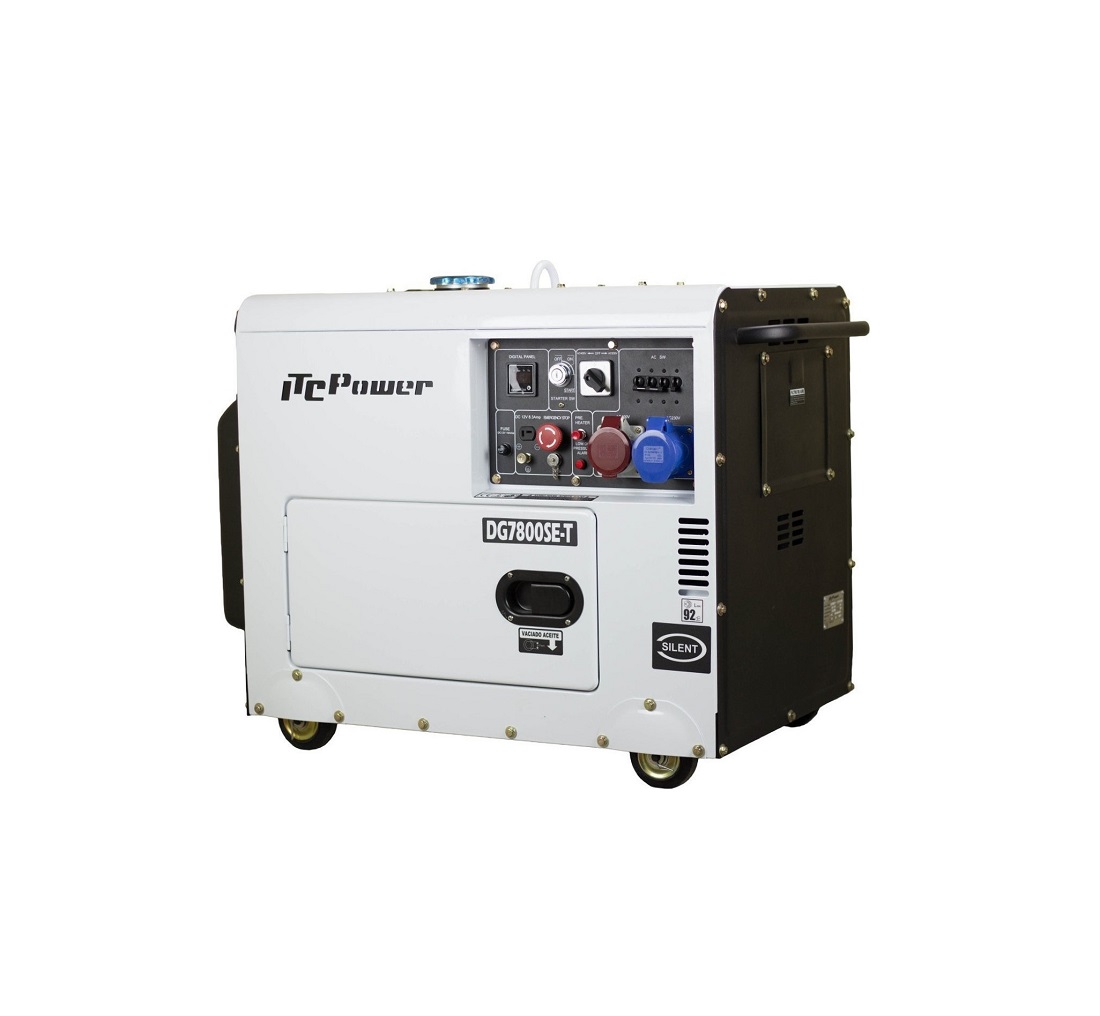

• Powerful and reliable ITC Power, DG 7800 SE-T 3PH Full Power, three-phase diesel generator.
• With an AVR system (electronic voltage stabilizer) that keeps the voltage stable.
• This is the most powerful power generation pair in the category
• Powered by the 498cc 13hp D500 single-cylinder air-cooled diesel engine.
• This particular model is the improved version of the DG7800LE generator pair.
• With electronic LED5 type control panel with digital indicators of operating hours, load and operating status.
• With a resettable fuse, apart from the standard thermal type fuses.
• With 16A Schuko type and 32A industrial type outputs for full exploitation of the provided power of the generator pair.
• With provision for connection of an automatic switchboard (ATS), which is available as an additional equipment.
• With critical components from quality manufacturers aiming for maximum reliability, such as NSK bearings.
• With preheater (Preheater) for easy starting at low ambient temperatures.
• High quality fan and white paint to keep the operating temperature low even during the hot months of the year.
• With electric start.
• Excellent design and robust construction.
• Ease of use.
• With CE marking, it meets all the safety requirements of the European Legislation.
• ITC Power is a company with a presence in more than 50 countries worldwide.
• Wheeled base included.
